Hioki PW3390 Product Overview功率分析仪
Key Features & Specifications

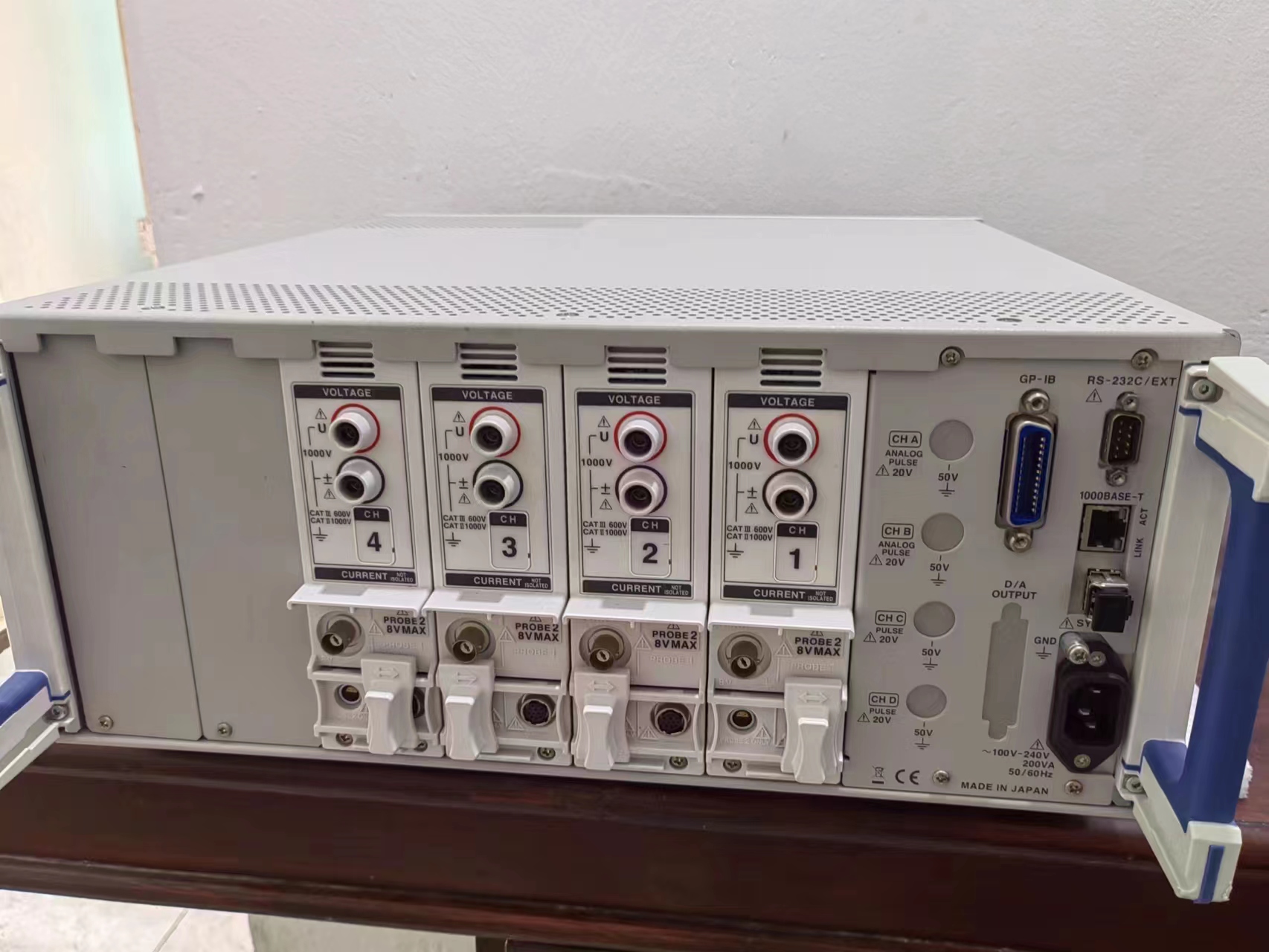

Hioki - PW3390 Power Analyzer
DC, 0.5 Hz to 200 kHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis
±0.04% basic power accuracy, among the best in its class
200 kHz measurement band with flat amplitude and phase accuracy that extend to high frequencies
Remarkably small and light footprint, enabling high-accuracy measurement to be easily carried out even in the field
Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products)
Simultaneous measurement of multiple circuits and ability to acquire synchronized data using up to 8 devices (for 32 channels)
Simple power measurement using clamp-on current sensors
Measurement of current and power inputs and outputs as part of the new WLTP fuel efficiency international standard
Description
Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3390 is a high-precision, broad-range power analyzer for measuring electrical power from DC to inverter frequencies, providing four input channels to support single- and three-phase inverter motor systems up to 4000 A AC/DC with superior accuracy.
High-accuracy, high-speed calculation of transient-state power in 50 ms; harmonic analysis; display of instantaneous waveforms; noise analysis; and ltaneous parallel calculation of all parameters, including efficiency loss.
